Brand: iCubeSmart

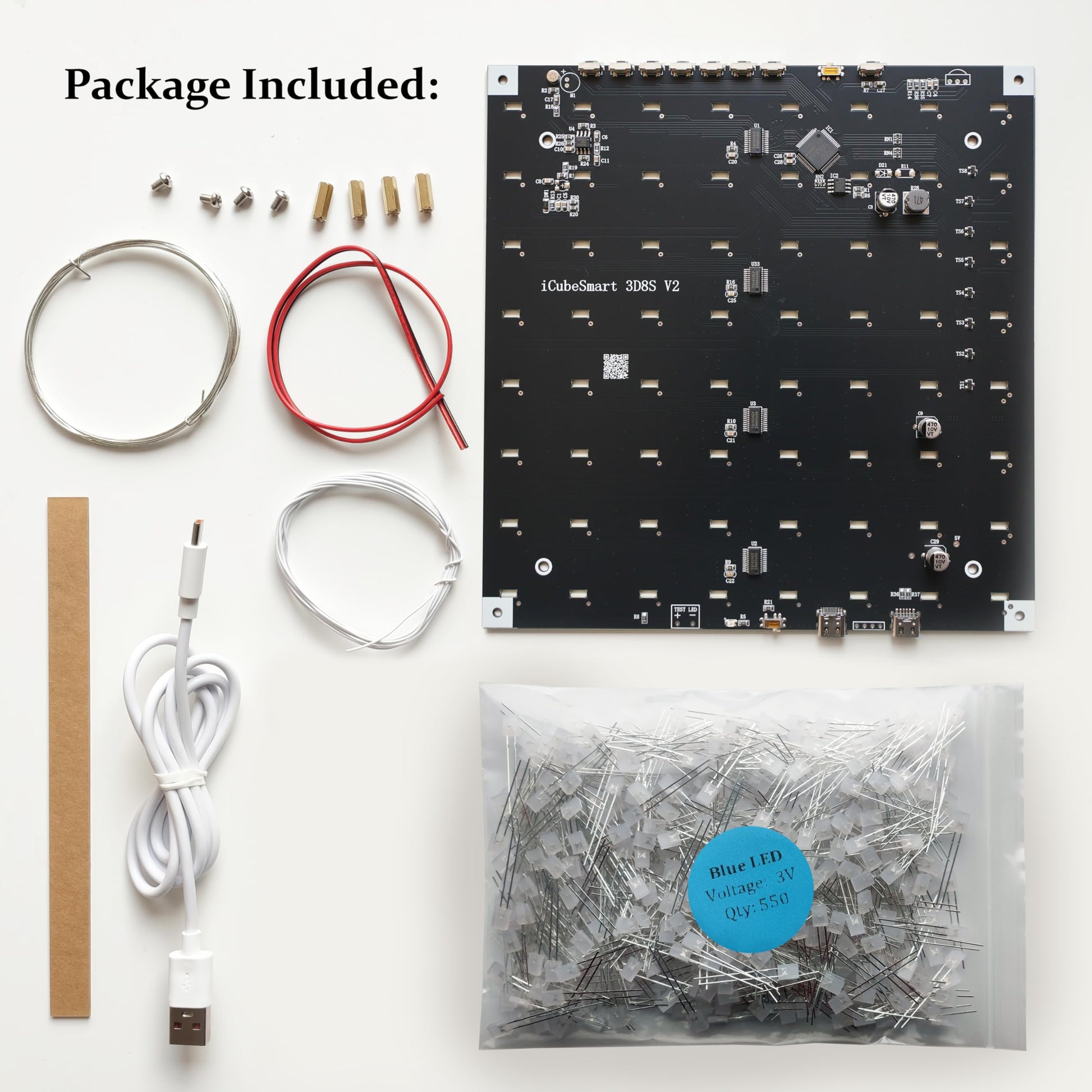

Upon receipt of the goods, you only need to weld the LED lamp based on the paper welding instructions and plug in the 5V usb power supply to display brilliant lighting effects. There are already more than 20 kinds of gorgeous animation effects built in the main board. If you need to modify the displayed patterns, you can download the information of the electronic files at the following link, which include more clear photos of the production process, 3D animation software and instructions for use, and instructions for downloading the program.<br><br> <b>This is a DIY soldering package, the package contains the following electronic components:</b><br> 1, Soldered and tested main board (size: 7.08*7.28inch) x1<br> 2, Copper column + screw x1<br> 3, TYPE-C cable x1 <br> 4, 0.8mm tinned iron wire x 80cm <br> 5, White electronic line x 100cm <br> 6, 2mm acrylic strip (used for bending LED anode) x1 <br> 7, Foggy highlight square 2*5*7mm 550 blue leds (As a matter of fact, only 512 LED lamps will be used, but to prevent damage to LED lamps during manufacture, each lamp bead is provided for standby)<br> 8, Red and black wires for testing LED x1<br> 9, Paper welding instructions x1<br> <br><b>Hardware Features:</b><br> Microcontroller-chip: STC32G12K128 <br> Driver chip: HT5024 + AO3401, the horizontal 8 layers are positive electrodes and the vertical 64 columns are negative electrodes.<br> <br><b>Finished product size: </b>7.08*7.28*7.88inch<br> <b>The distance between the leds is 0.9inch</b>

Features:

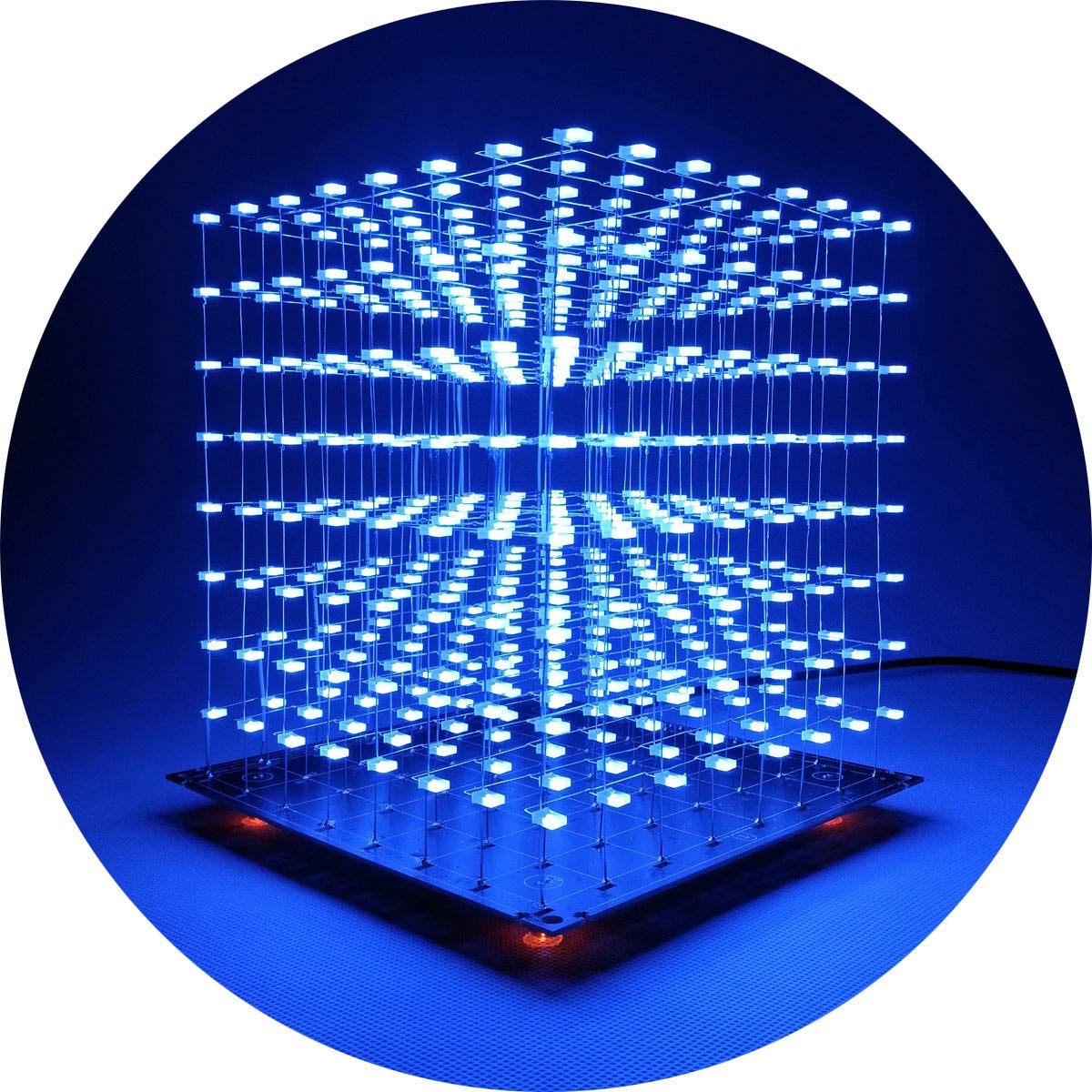

• [LED CUBE KIT] This is a DIY welding package for 3D cube light, a 3D matrix made up of 512 blue square LEDs, which can display a lot of colorful dynamic lighting shapes. It is suitable for students' manual electronic manufacturing courses and welding exercises. Meanwhile, it is also a pretty innovative and meaningful small gift.

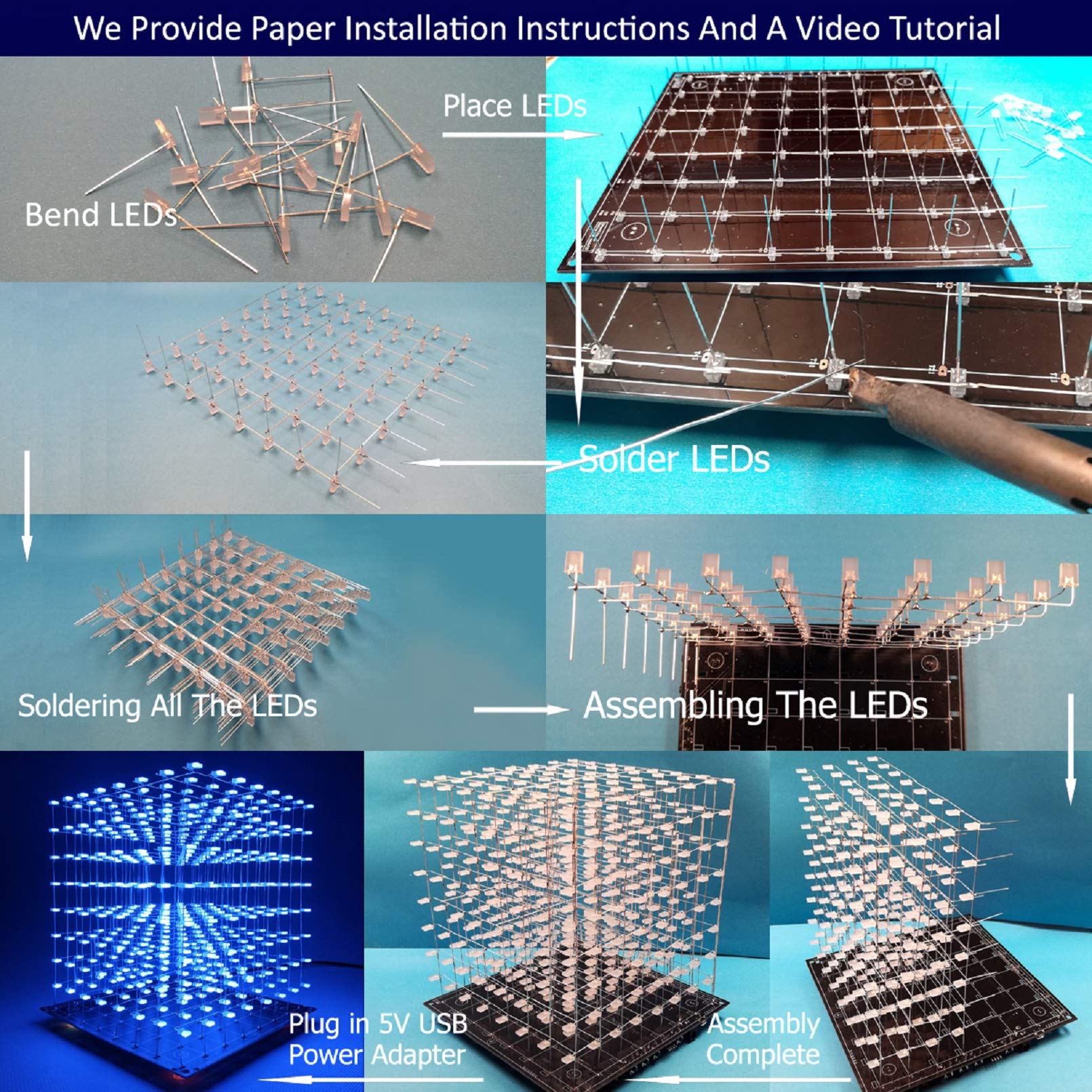

• [SIMPLE DIY] The PCB main board in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 64 square holes on the main board to fix the LED and make welding easier. We provide paper welding instructions.

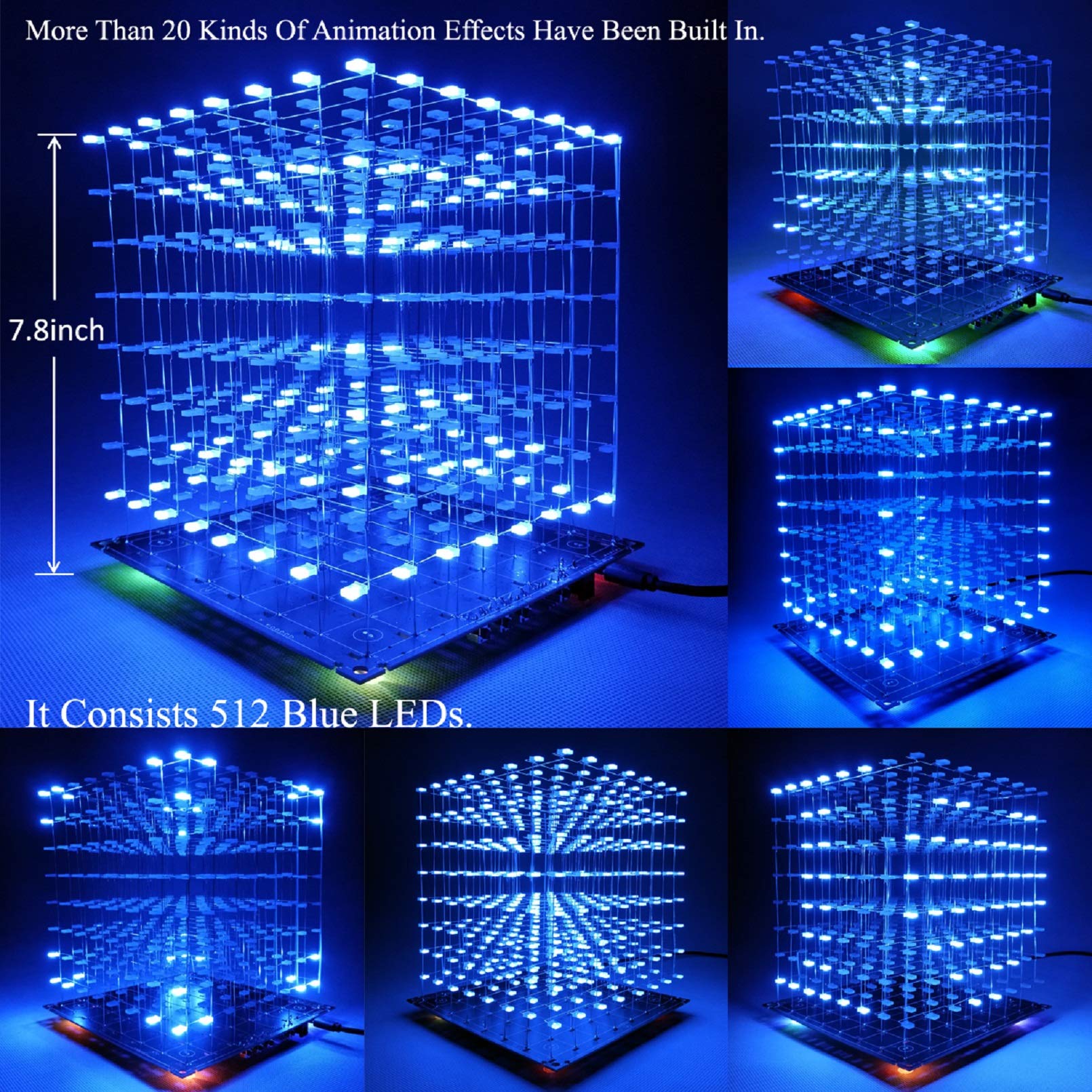

• [EFFECTS CAN MODIFIED] More than 20 kinds of brilliant animation effects have been built into the main board of this cube. Users can display the animation after welding and plugging in the USB power supply. Users can also modify the animation displayed through the 3D software provided by us. Our 3D software can directly generate a HEX burning file, and then download the HEX file to the light cube to run.
• [MAIN BOARD FUNCTION] The size of the main board PCB is 7.08*7.28inch
• the main board is powered by 5V USB
• there are 7 keys on the main board to switch animation modes
• the mainboard has a TYPE-C for downloading programs.
• [PROFESSIONAL SERVICES] iCubeSmart has been devoted to the design and production of light cube for 9 years. We have designed various sizes of led cube with professional after-sales technical support. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can send us an email for any questions. We offer life-long technical support services for our DIY products.

Product Details:

• Color: Blue
• Size: 18x18.5x19 cm
• Model: 3D8-S-DIP-BLUE
• Number of Pieces: 1
• Package Quantity: 1
