Brand: DWEII

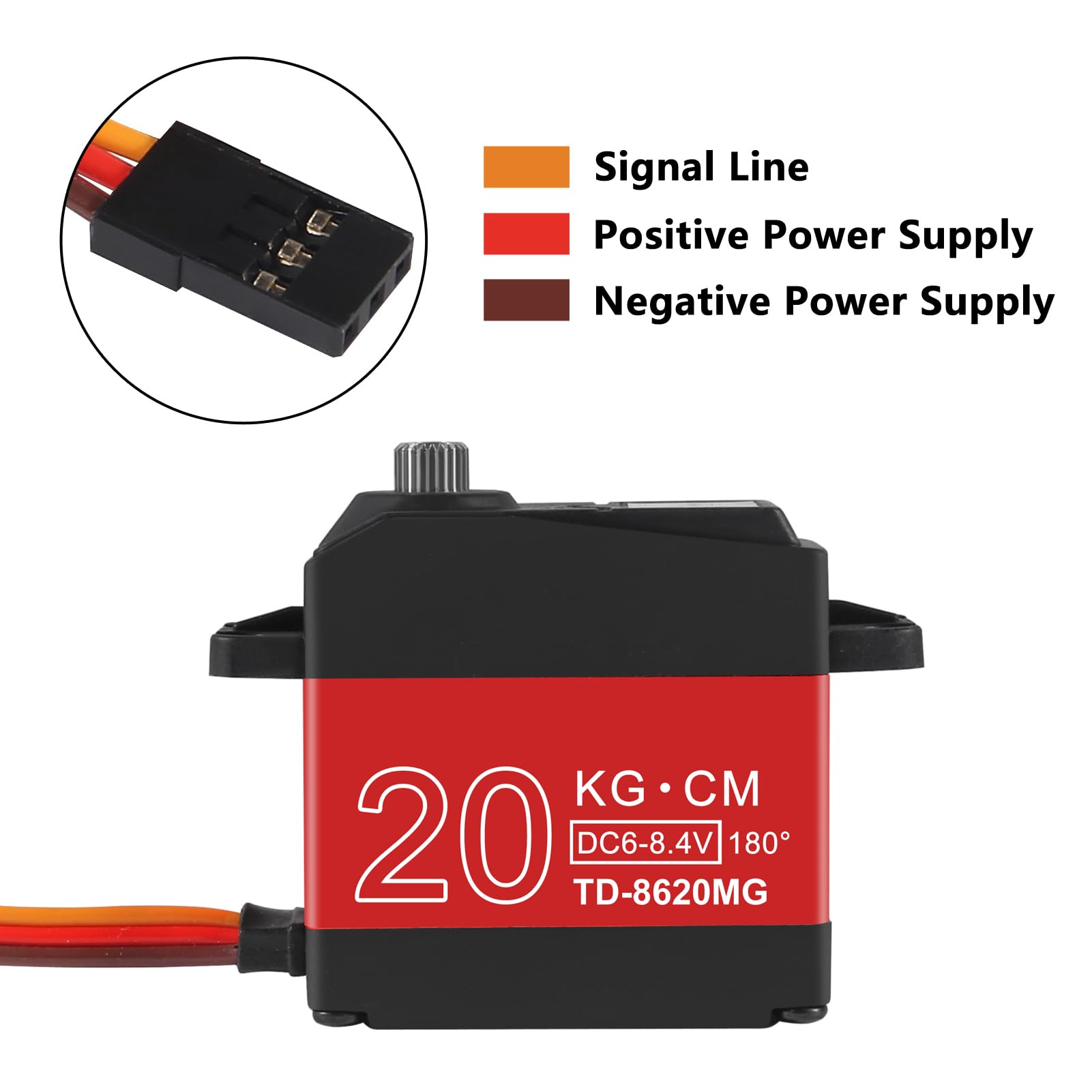

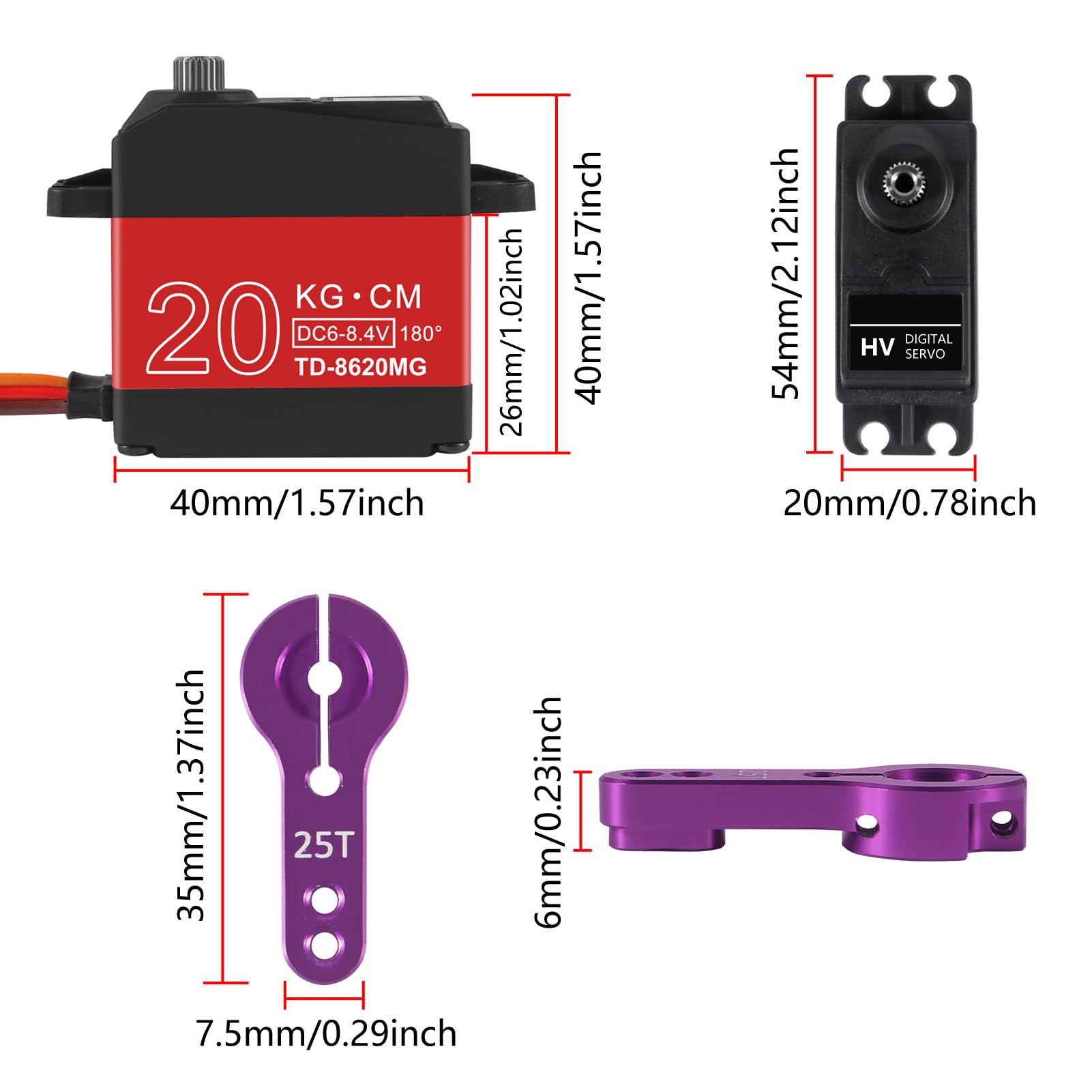

<p><b>20KG Servo Motors High Torque Digital Servo Metal Waterproof Servo for R/C Car Robot</b></p> <p><b>Specification:</b></p> <p>Product weight: 0.15Ib / 60g</p> <p>Product size: 1.57*0.8*1.50inch / 40*20*38mm</p> <p>Operating speed (at no load):0.16 sec/60°(5V)/0.14sec/60°(7.4V)</p> <p>Stall torque: 20 kg·cm (277.6 oz·in) @7.4V</p> <p>Working Voltage: 6-8.4V</p> <p>Stall current: 2.4~3A</p> <p>No-load Current: 100mA</p> <p>Servo Horn: 25T</p> <p>Servo Wire: 30cm(11.8inch) in length</p> <p>Control Method: PWM pulse width control</p> <p>PWM pulse width range: 500~2500us,corresponding to 0~180°</p> <p>Duty Ratio: 0.5ms~2.5ms</p> <p>Pulse Period: 20ms</p> <p>Rotation range: 0~180°</p> <p>Servo accuracy: 0.3°</p> <p><b>Wire Layout: </b></p> <p>red wire: +;&nbsp;</p> <p>black wire: GND;&nbsp;</p> <p>white wire: PWM/signal</p> <p>Package? 2PACK 20KG RC Servo High Torque Servo Motors</p>

Features:

• This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output.
• 20kg Large Torque: This servo boasts an impressive maximum torque of 20KG.CM 7.4V, enhanced by its accompanying metal servo arm.
• 180°Rotation: The controllable angle range of the steering gear is 180 degrees, with good linearity and accurate control.

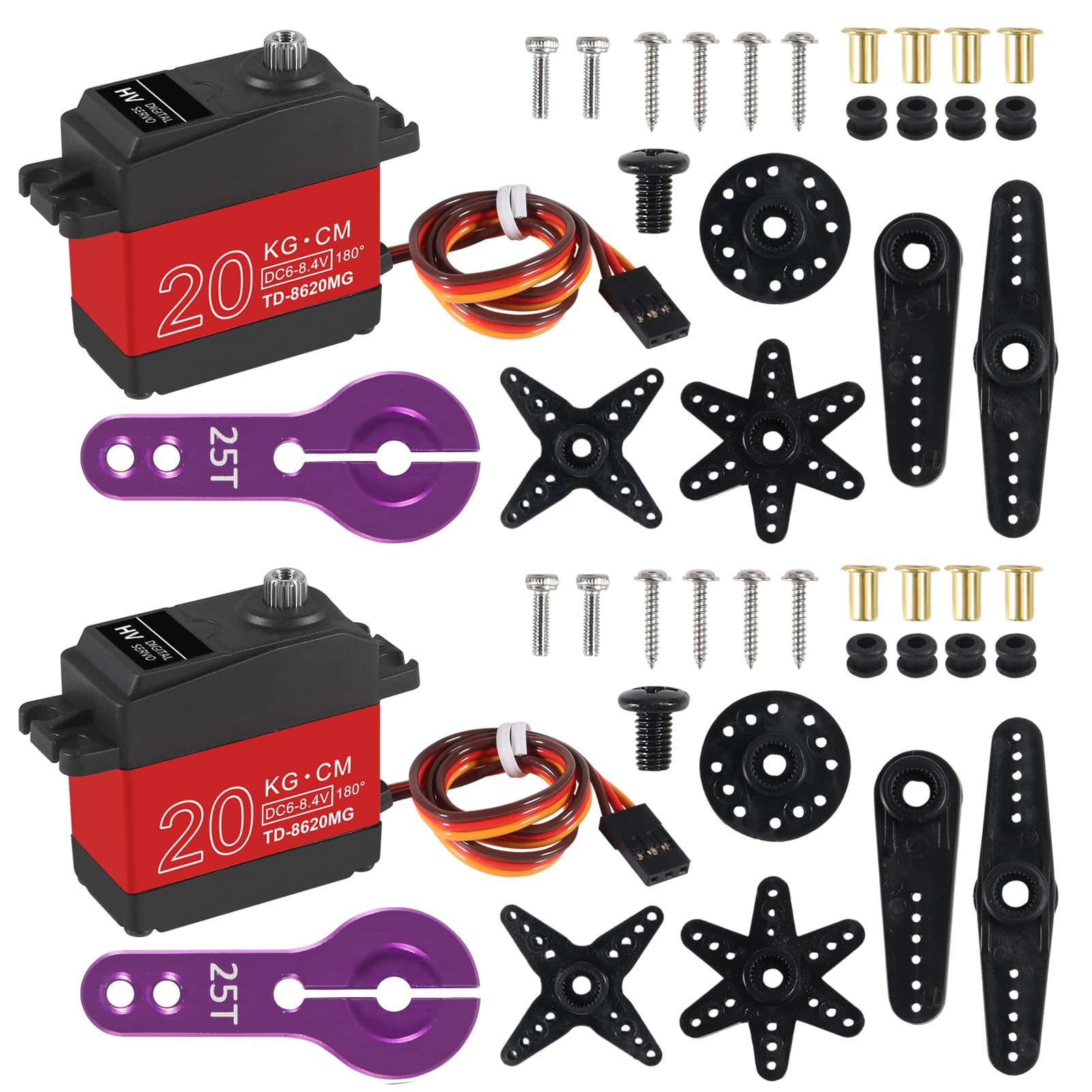

• you will get 2PACK 20KG RC Servo High Torque Servo Motors, Waterproof Full Metal Gear Steering Servo for 1/6 1/8 1/10 1/12 RC Car Robot DIY, Digital Servo with 25T Servo Horn, Control Angle 180°

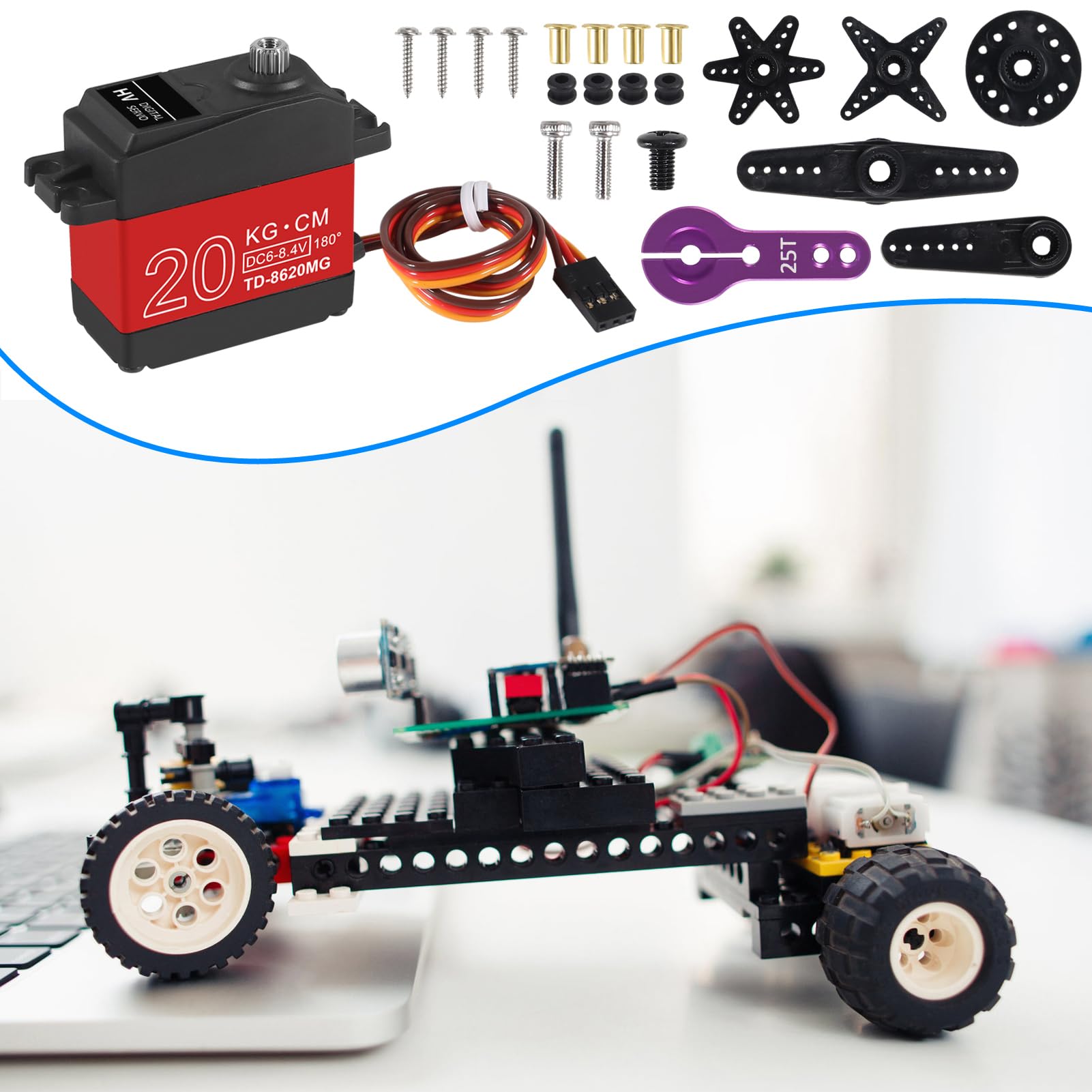

• Great Compatible Servos : It fits 1/6 1/8 1/10 1/12 RC cars, robots. rc servo metal gear is compatible with car, trucks, robotic arms, mechanical arms, crawler, aircraft, boat.
